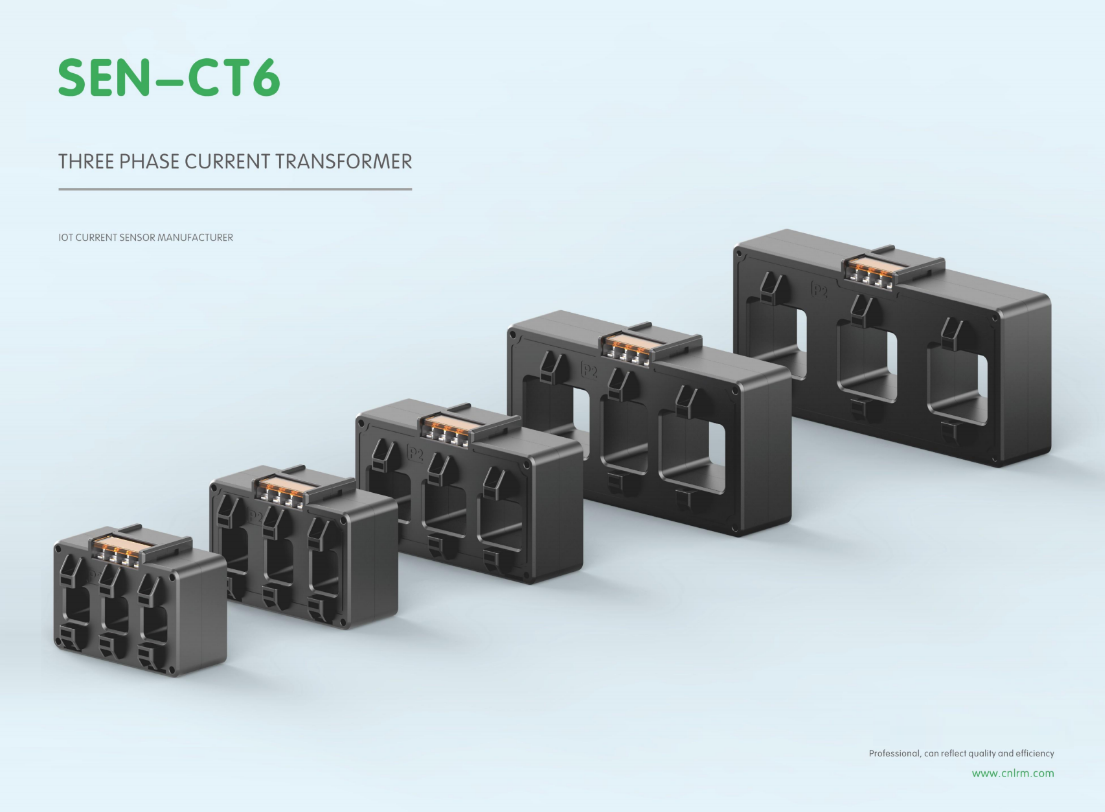

China Three-Phase Current Transformers: A Complete Guide to Selection and Applications
2026-08-31
Selecting a three-phase current transformer isn't just about matching ratios and burden ratings. In China's fast-evolving power infrastructure, the right choice can mean the difference between precise energy monitoring and costly measurement drift. This guide cuts through the technical noise to show how Xiasen transformers handle real-world applications—from smart grid substations to industrial motor control—without the usual trial-and-error.
Why Three-Phase Current Transformers Matter More Than You Think
Most folks treat current transformers as simple ratio boxes—measure the amps, send a scaled signal to a meter, done. But in a three-phase system, that assumption falls apart fast. Slight phase imbalances, harmonic distortion, or a single loose connection can turn a supposedly predictable CT into a source of misleading data. The real value isn't just in stepping current down; it's in preserving the phase relationship and waveform fidelity across all three legs. Lose that, and your protection relays might trip late, your energy bill could drift by a few percent, or worse, a developing fault goes unnoticed until something expensive fails.
What rarely gets discussed is how much a three-phase CT setup influences the accuracy of downstream decisions. A poorly specified CT—say, with the wrong burden or saturation characteristics—won't simply underreport current; it can inject enough error to make a motor overload protection think everything's fine while one winding cooks itself. In renewable installations where inverters push non-sinusoidal currents, standard CTs often hit their limits long before the nameplate rating suggests. That's why field engineers who've dealt with nuisance trips or unexplained meter discrepancies learn to respect the CT not as a dumb accessory, but as the eyes of the whole electrical system. Get those eyes blurry, and every layer of control and monitoring ends up guessing.
There's also a practical angle that rarely makes it into spec sheets: installation and long-term drift. A three-phase CT that's clamped on slightly off-center, or one exposed to vibration and temperature swings, can silently shift its accuracy class. Over years, that drift compounds—your energy management system thinks you're using 5% less power than reality, or your predictive maintenance algorithms start seeing ghosts. The CT is often the cheapest component in the panel, yet its performance quietly gates the reliability of everything connected downstream. If you're only thinking about it when the electrician asks for a model number, you're already leaving real money and safety margin on the table.
Decoding Accuracy Ratings Without Getting Lost in the Spec Sheet
Accuracy specs love to hide behind decimals and ideal conditions. A 0.1% error sounds impressive until you notice it only applies at room temperature, with a perfectly stable input, and after a 30-minute warm-up. The real test is asking what happens when the voltage drifts, the load hiccups, or the meter sits in a truck on a hot afternoon. That's where the datasheet's fine print quietly disqualifies itself.
Look for the environmental envelope first: temperature coefficient, long-term drift, and noise under realistic bandwidth. A unit that holds 0.05% across 0–50°C is often more useful than one claiming 0.01% in a narrow lab window. Also check how accuracy is expressed — full scale, reading, or mixed. A high-resolution ADC can still drown in front-end offset if the spec sheet only brags about bits.
Practical accuracy means repeatability in your actual setup, not just a number on a calibration certificate. When comparing instruments, test the same signal with both and note the spread over days, not minutes. The spec sheet is a starting point — the drift, hysteresis, and susceptibility to interference are what decide whether a measurement is trustworthy when the results actually matter.
Burden and Saturation Are the Silent Killers of Measurement Precision
When a measurement system is pushed beyond its designed operating range, the first casualty is often the very precision it was built to deliver. Burden—the load imposed on the circuit being measured—acts not as an occasional inconvenience but as a constant, subtle distortion. A voltmeter with insufficient input impedance draws current from the node it probes, pulling the voltage away from its true value. The error may be small, but in high-resolution work it becomes the difference between a trustworthy reading and a confident mistake.
Saturation operates on a different axis but with equally corrosive effect. Once a sensor, amplifier, or analog-to-digital converter reaches its full-scale limit, it stops responding linearly. The output clamps, flatlines, or wraps around, and the operator may not notice until downstream analysis produces nonsensical results. Worse, recovery from saturation is rarely instantaneous—many devices exhibit lingering offsets or hysteresis that contaminate subsequent measurements long after the overload condition has passed.
Both burden and saturation share a common trait: they quietly undermine the assumption that the instrument is reporting what is actually present. Precision specifications mean little when the measurement front end is silently loading the signal or when the dynamic range has been exhausted. The only reliable defense is to treat these effects as design constraints from the start—choosing high-impedance inputs, monitoring headroom, and validating linearity across the entire expected operating envelope rather than assuming the datasheet numbers will hold unconditionally.
Resin-Cast vs. Split-Core CTs – Picking the Right Build for the Job
Choosing between a resin-cast and a split-core current transformer usually comes down to how much disruption you can tolerate during installation and what kind of abuse the CT will face afterward. Resin-cast units are sealed solid, which means the windings and core stay locked in place under vibration, moisture, and wide temperature swings. Split-core designs, on the other hand, hinge open so you can wrap them around an existing conductor without breaking the circuit. That alone steers a lot of retrofit projects toward split-core, but it's not the whole story.
If the CT is going to live outdoors, near salt spray, or in a spot where it might get knocked around, the resin-cast build usually earns its higher price. The epoxy encapsulation keeps out contaminants that cause drift, and the solid body doesn't rely on a mechanical latch or hinge that can loosen over time. Accuracy tends to stay tighter across years of service, which matters for billing-grade metering or protection relays that trip on small current changes. The trade-off is weight and bulk, plus you need to slide the CT over a conductor end during installation, which can mean shutting down a panel or pulling cable.
Split-core CTs shine when downtime is expensive or the conductor can't be disconnected. You open the core, snap it around the wire, and you're done in minutes—no need to re-terminate lugs or disturb existing wiring. They're also lighter and cheaper, which makes them a practical choice for temporary energy audits or branch circuit monitoring where you might move sensors around. Just keep in mind that the split faces introduce tiny air gaps, so the measured output can be a bit less stable, especially at low currents or if the mating surfaces get dirty. Match the build to the job: permanent, harsh, high-accuracy needs favor resin-cast; retrofit, temporary, or cost-sensitive jobs lean split-core.
The Installation Errors That Trip Up Even Experienced Teams
It's rarely the big, obvious missteps that derail an installation. More often, it's the quiet assumptions baked into a script—hardcoded paths that worked on a developer's laptop, environment variables that exist in CI but not on a bare-metal server, or a filesystem that's case-sensitive on one box and not on another. Even teams that run installs daily can miss how a package manager resolves transitive dependencies differently when a proxy or offline mirror is involved. The result is a build that passes three times in a row and then fails on the fourth for no apparent reason.
Another classic trap is treating installation as a one-time event instead of a repeatable process. Experienced engineers will manually patch a missing library, tweak a symlink, or chmod a directory to get things moving, then forget to capture that change anywhere. Six months later, a fresh hire follows the documented steps word-for-word and hits the same wall—because the real fix lived in someone's shell history, not in the repo. Version drift compounds this: a tool installed today might pull a slightly newer patch release tomorrow, and suddenly a flag that was deprecated two years ago starts throwing warnings that break a strict parser.
Permissions and ownership issues probably account for more late-night debugging than anyone wants to admit. A service runs as one user, but the installation creates logs or sockets as root; a container starts with a read-only filesystem, but the entrypoint tries to write a PID file to /var/run. These failures are maddening because they often surface only under specific conditions—when a systemd unit restarts after a crash, or when a node rejoins a cluster after maintenance. The error message rarely says "check ownership." It says something like "connection refused" or "permission denied" on a path you've never touched.
Matching CTs to Harsh Environments and Oddball Applications
Harsh environments break ordinary CTs in predictable ways. Epoxy coatings crack after repeated thermal cycling, cores saturate when ambient temperature climbs past 70°C, and moisture wicks into secondary terminals. Matching a CT to a furnace or offshore platform means looking past the ratio and burden specs to things like potting compound flexibility, terminal sealing, and whether the core material keeps its accuracy when there's a 40-degree swing between day and night. Some manufacturers rate their units for -40°C to +85°C, but that's only a starting point if you're mounting one next to a forging press or inside a wind turbine nacelle.
Oddball applications usually ignore standard catalog footprints. You might need a split-core CT thin enough to fit around a busbar with only 12 mm of clearance, or a custom ratio like 750:1 because the load never draws more than a few amps but the metering system demands a certain voltage. I've seen designers spend weeks forcing a standard 5A secondary unit into a battery monitoring system, only to discover a 100 mA or 1A secondary CT from a niche supplier drops straight in and cuts noise. The key is to ask whether the CT has to measure a distorted waveform - if so, a low-loss nanocrystalline core may outperform the usual silicon steel.
Then there are the one-off physical constraints: submersion in transformer oil, exposure to salt spray on a fishing vessel, or placement inside a high-vibration diesel generator. Potting with flexible polyurethane rather than rigid epoxy prevents internal cracks, and welded seams or IP67 terminal boxes keep corrosion out. If the CT sits on a circuit with high-frequency harmonics from variable-speed drives, core losses climb fast, so a gapped core or even a Rogowski coil could be a better fit. In those situations, it's often cheaper to have a supplier wind a few prototypes with the right core, insulation, and lead length than to keep replacing a commodity CT every eight months.
FAQ
Measuring class transformers are designed to stay accurate within normal load currents and saturate quickly to protect connected meters during faults. Protection class units, like 5P10 or 10P20, maintain linearity well above rated current so relays can reliably see fault magnitudes. In practice, Chinese switchgear often uses separate cores for metering and protection to avoid compromising either function.
Harmonics increase core losses and can push the transformer into early saturation if it was sized only for fundamental current. A CT with a higher accuracy limit factor and a wider frequency response, often specified with a low flux density core, keeps measurement errors below 1% even when drives introduce 5th and 7th harmonic content.
The S suffix means the transformer is accurate from 1% to 120% of rated current, rather than the usual 5% to 120%. That matters in revenue metering and energy audits because loads in modern facilities often run far below rated capacity at night. Choosing an S class prevents under-registration of energy when only a small fraction of the primary current flows.
The primary conductor must be centered in the window to avoid localized flux concentration, and the secondary should never be open-circuited while current flows. Leaving enough space around the CT for heat dissipation and keeping the secondary leads twisted reduce noise pickup. In dense busbar compartments, field technicians often secure the CT with non-magnetic brackets to prevent eddy current heating.
Start with the drive input current at full load, then add margin for overload and harmonic heating. A ratio that puts the normal operating current near 60-80% of the CT primary rating works well. For a typical 200kW drive drawing about 360A, a 500/5 or 600/5 CT with a 5P10 protection core and a 0.5S measuring core handles both accuracy and fault duty without saturating prematurely.
Long leads raise the secondary burden, and exceeding the rated burden directly degrades accuracy. To compensate, you can use a CT with a higher burden rating, such as 15VA instead of 5VA, or increase the secondary current to 1A to cut resistive losses by a factor of 25 compared to 5A. Twisted shielded pairs and dedicated conduit runs also prevent induced errors from adjacent power cables.
Most reputable factories can supply units tested to GB 1208, which aligns closely with IEC 61869-2. Buyers often ask for type test reports from a recognized lab like KEMA or CESI to avoid relying solely on factory certificates. For projects inside China, CCC approval may apply to certain low-voltage instrument transformers used in safety circuits, so confirming the exact certification scope with the supplier is wise.
Two CTs can only calculate the third phase current when the vector sum of the neutral is negligible, which fails in buildings with heavy single-phase loads. Three CTs directly measure each phase, and the residual or neutral current can then be derived accurately for leakage or unbalance protection. Many modern power meters also require three current inputs to compute true RMS and harmonic distortion per phase without assumptions.
Conclusion
Many engineers treat three-phase current transformers as commodity items, but in China’s power infrastructure that assumption falls apart quickly. A seemingly minor mismatch in accuracy class or burden rating can quietly distort metering data and relay inputs long before anyone notices. The real trouble often starts on the spec sheet: a CT labeled 0.5 class may behave very differently once the secondary loop resistance creeps up or the core edges toward saturation. Instead of memorizing every curve, it helps to think of the CT as a magnetic balancing act—secondary burden, lead length, and fault current all pull it off center. Getting that balance right matters more than the nameplate precision.
Build choice follows the same practical logic. Resin-cast units survive humidity, dust, and chemical exposure better than many expect, but split-core designs earn their keep in retrofit panels where downtime is not an option. Yet even the best CT fails quietly when installation errors sneak in: reversed polarity, loose secondary connections, or a forgotten shorting link can turn a routine commissioning into hours of chasing ghost readings. China’s industrial landscape also throws oddball conditions at equipment—high harmonic loads, wide temperature swings, or cramped metering compartments. Matching the CT to the actual site, not the idealized drawing, is what separates a reliable measurement chain from one that only works on paper.
