Feed Mixer Gearbox Types and Performance Features

In the agricultural and livestock industries, efficiency, durability, and reliability are paramount. The heart of any modern feed mixing wagon is its gearbox, a component that dictates performance, longevity, and overall operational cost. This article provides an in-depth exploration of Feed Mixer Gearbox types, their critical performance characteristics, and a detailed breakdown of the technical specifications that set high-quality units apart. We will delve into the engineering behind these vital components, showcasing how the right gearbox can transform your feeding operations.

Understanding the Role of a Feed Mixer Gearbox

A Feed Mixer Gearbox is not a simple power transmission unit; it is a precision-engineered component designed to handle high-torque, often abrasive, mixing applications. Its primary function is to transfer power from the tractor's Power Take-Off (PTO) to the mixer's augers or paddles, ensuring a consistent, homogeneous blend of silage, grains, haylage, and other feed components. The wrong gearbox can lead to inefficient mixing, increased fuel consumption, premature wear, and costly downtime.

Key Types of Feed Mixer Gearboxes

Several gearbox designs are employed in feed mixers, each suited to specific machine configurations and mixing philosophies.

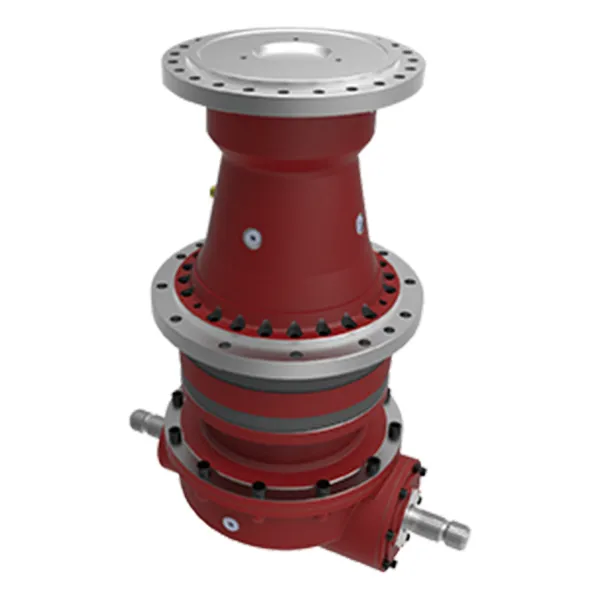

1. Vertical Mixer Gearboxes: These are the most common type, mounted directly on top of the vertical mixing chamber. They typically use a bevel gear design to change the power flow from the horizontal input shaft (from the PTO) to a vertical output shaft that drives the mixing augers.

   • Performance Features: Known for their robust construction to handle the significant downward thrust loads generated by the augers. They are designed for efficient power transfer in a compact form factor.

2. Horizontal Mixer Gearboxes: In horizontal roller mixers, the gearbox is often a parallel shaft or planetary type, driving a long, horizontal auger that runs the length of the mixing tub.

   • Performance Features: These units are engineered for distributing torque evenly along the length of the auger. They often operate at higher speeds than vertical units and are built to manage different load distributions.

3. Planetary Gearboxes: Increasingly popular in heavy-duty applications, planetary gearboxes are valued for their high torque density, compact size, and exceptional durability.

   • Performance Features: Their coaxial design allows for efficient power transmission with reduced noise and heat generation. They excel in applications requiring very high torque in a limited space, making them ideal for larger, high-capacity mixers.

4. Bevel Helical Gearboxes: This type combines bevel gears for directional change and helical gears for smooth, high-torque power transmission.

   • Performance Features: The helical gears provide quieter operation and higher load-bearing capacity compared to straight-cut spur gears. This design offers an excellent balance of efficiency, strength, and smooth performance.

Critical Performance Features of a High-Quality Feed Mixer Gearbox

When selecting a gearbox, understanding its performance features is crucial. Here’s what distinguishes a superior product:

• Torque Capacity: The maximum torque a gearbox can handle continuously without failure. It must be matched to the mixer's size and the density of the feed materials.

• Gear Material and Hardening: High-alloy steel gears, often through-hardened or case-carburized, provide superior resistance to wear and pitting, ensuring a long service life.

• Bearing Quality and Arrangement: High-capacity, tapered roller bearings are essential to manage both radial and axial (thrust) loads effectively.

• Sealing System: Multi-labyrinth seals, often combined with grease purging systems, are critical to prevent the ingress of abrasive dust and moisture, which are the primary causes of gearbox failure.

• Lubrication: Efficient oil splash systems or dedicated lubrication pumps ensure all gears and bearings are constantly protected from wear and overheating.

• Housing Construction: A rigid, cast-iron or ductile iron housing minimizes flex under load, ensuring proper gear alignment and protecting internal components from shock loads.

• Heat Treatment: Precision heat treatment of gears and shafts enhances their surface hardness and core toughness, providing resilience against impact and fatigue.

Detailed Technical Specifications of Raydafon Feed Mixer Gearboxes

At Raydafon, we engineer our Feed Mixer Gearbox units to exceed industry standards. Our commitment to precision manufacturing and quality materials ensures unparalleled performance and reliability. Below is a detailed breakdown of our standard product parameters.

Table 1: Raydafon Standard Vertical Feed Mixer Gearbox Series (RV Series)

List of Standard Features Across All Raydafon Gearboxes:

• Gears: Manufactured from 20MnCr5 alloy steel, precision cut and case-carburized for maximum surface hardness (HRC 58-62) and a tough, shock-absorbing core.

• Shafts: Forged from high-grade carbon steel, heat-treated and ground to precise tolerances for perfect alignment and strength.

• Bearings: Utilizes internationally renowned brand tapered roller bearings (e.g., SKF, FAG, NSK) designed for heavy radial and axial loads.

• Seals: Triple-labyrinth design with nitrile rubber sealing elements creates a formidable barrier against contaminants.

• Warranty: Backed by a standard 12-month warranty, with options for extended coverage.

Choosing the Right Gearbox for Your Operation

Selecting the correct Feed Mixer Gearbox involves cross-referencing your tractor's PTO horsepower with the recommended gearbox specifications for your mixer model. Always consider a safety factor; choosing a gearbox rated for torque slightly higher than your calculated requirement can significantly extend its life, especially when mixing dense or tough materials.

Maintenance Tips for Longevity

• Check Oil Levels Regularly: Before each use, ensure the oil level is correct. Change the oil after the first 50 hours of operation and every 250-500 hours thereafter, or as recommended.

• Listen for Unusual Noises: Grinding, knocking, or whining sounds can indicate internal problems that need immediate attention.

• Monitor for Leaks: Inspect the gearbox housing and seals for any signs of oil leakage.

• Grease Input Shaft: Keep the PTO input shaft properly greased to ensure smooth engagement and prevent wear.

A Feed Mixer Gearbox is a critical investment in the productivity of your farming operation. Understanding the types, features, and technical specifications allows you to make an informed decision that safeguards your efficiency and bottom line. At Raydafon, we have dedicated decades to refining the design and manufacture of these essential components, ensuring they deliver power, reliability, and durability day in and day out.

I’ve seen firsthand how the right gearbox can eliminate downtime and reduce operating costs for farms just like yours. Don't let a gearbox failure bring your feeding schedule to a halt. Reach out to our technical team today with your mixer model and requirements. We’re here to provide you with a perfect-fit, high-performance solution. Email us at [email protected] for a quote or technical consultation. Let's keep your operation running smoothly.
