0.69' OLED Graphic OLED Display with 96X16 SSD1306 IC 14pin
PRODUCT DESCRIPTION96x16 Graphic OLED Display | RY-9616TSWCG02Module size: 26.3x8x1.2mmDriver: SSD1306Blue/White Pixels, 8-bit Parallel; I2C; 3/4-wire SPI interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 2.6~3.5V OLED, RoHS Compliant. 1 Model ......
Send Inquiry
Product Description
PRODUCT DESCRIPTION
96x16 Graphic OLED Display | RY-9616TSWCG02
Module size: 26.3x8x1.2mm
Driver: SSD1306
Blue/White Pixels, 8-bit Parallel; I2C; 3/4-wire SPI interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 2.6~3.5V OLED, RoHS Compliant.
| 1 | Model Number | RY-9616TSWCG02 |
| 2 | Resolution | 96*16 |
| 3 | Display color | White/Blue |
| 4 | Drive Duty | 1/16 Duty |
| 5 | Dot Patch | 0.18*0.2mm |
| 6 | Controller IC | SSD1306 |
| 7 | Outline Dimensions | 26.3x8x1.2mm |
| 8 | Active Area | 17.26x3.18mm |
| 9 | Interface | IIC port |
| 10 | Pixel Size | 0.16*0.18mm |
| 11 | Operating Temp. | -20°C~+70°C |
| 12 | Storage Temp. | -30°C~+80°C |
| 13 | Number of pins | 14 pin |
MORE INFORMATION ABOUT OLED DISPLAY
0.69 inch OLED Arduino is very popular application for the 0.69 inch OLED displays, it is also known for 0.69 inch OLED I2C Display. If need Arduino 0.69 inch OLED I2C example, you can buy the I2C 0.69 inch OLED Display Module to test at first, you can check the 0.68 inch OLED datasheet above, and we can provide the 0.69 inch OLED I2C Arduino library for your projects.

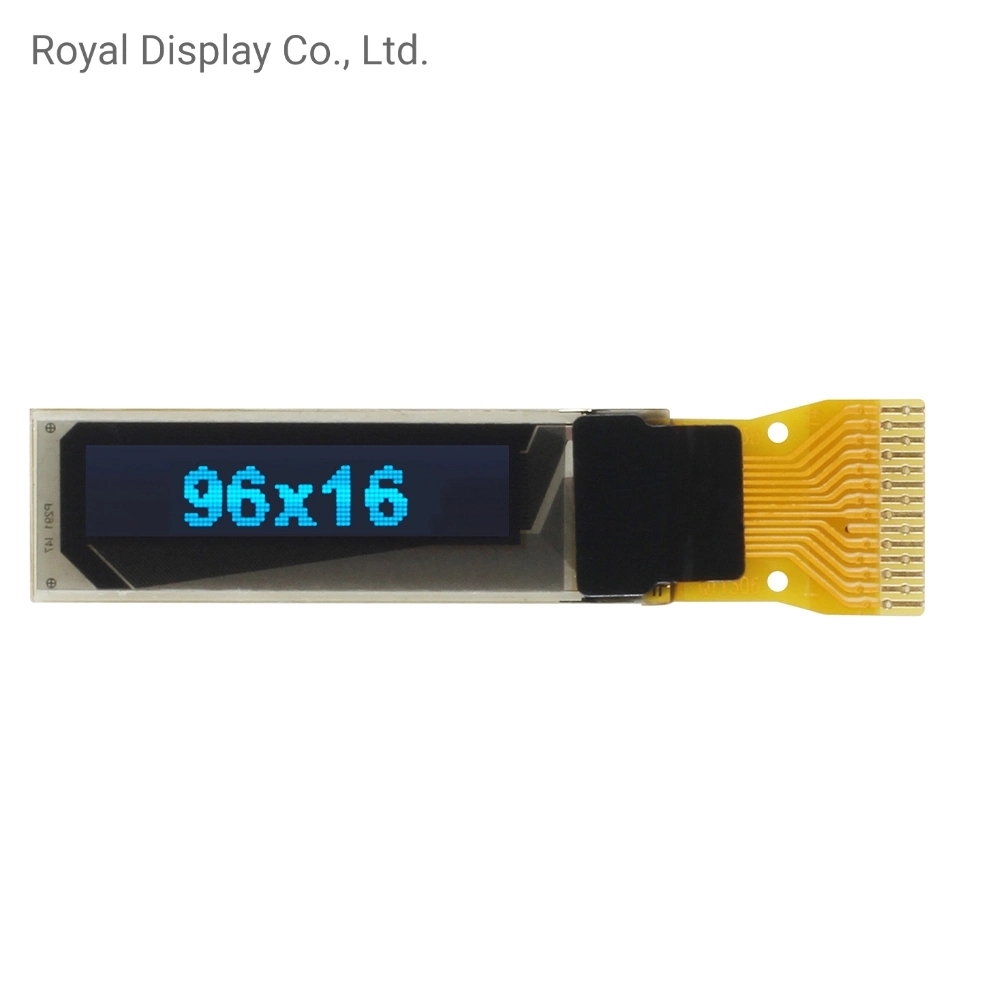

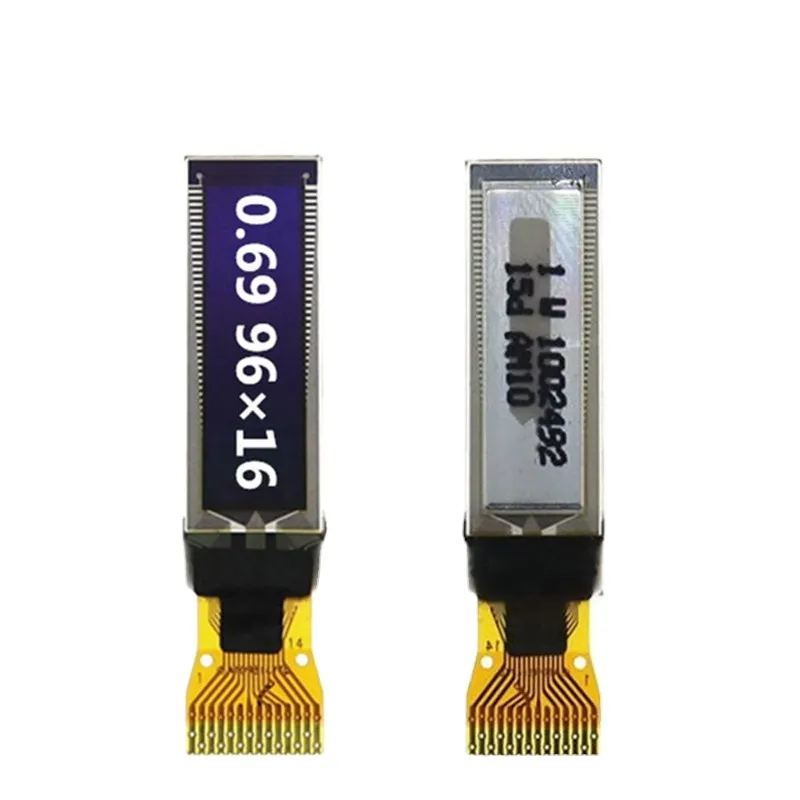

DETAILED IMAGES
PRODUCT APPLICATION

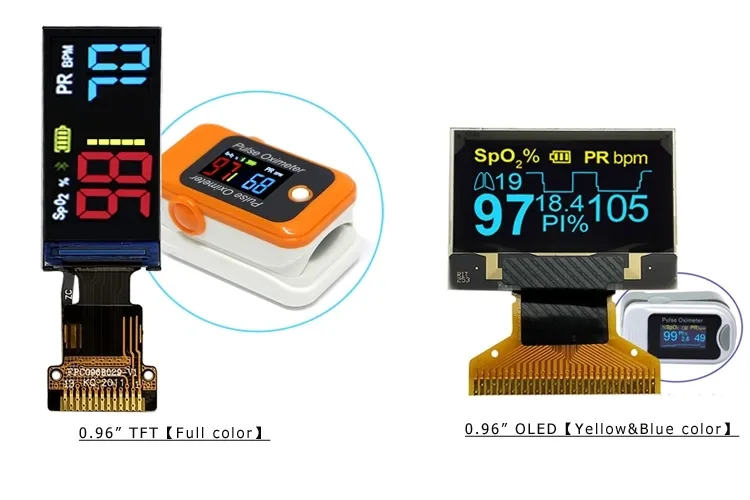

Our 0.96 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
OUR SERVICE ADVANTAGES
1.Small order would be accepted.
2.Mass production lead time would be guaranteed.
3.Each order will have 0.2%-0.5% spare.
4.Even customers do not have a cooperation with us, we also can provide technical services.
5.If mass production has any quality problem, customer can return it.
FAQ
1. What is the MOQ?
Re: No MOQ for samples,different MOQ requirements for bulk order.
2. What about the delivery time?
Re: For standard product,1 week for samples,4 weeks for bulk order;
For customization,3-4 weeks for samples,4 weeks for mass production after sample confirmation.
3. Is there any warranty for your products?
Re: Yes,we offer 12-month warranty for unartificial defect.
4. What is your shipping method?
Re: We can ship as buyer's requirements,our suggestions:
For small quantity,ship by DHL/Fedex/TNT/EMS Express service,delivery time: 4-6 business days;
For large quantity,ship by sea transaportation or air transportation for saving shipping charge.
5. What is your payment method?
Re: We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
6. Do you offer customization service?
Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.
