128X64 Pixel /SSD1306 3/0 Pin/Blue/Yellow Color 0.96 Inch Small OLED Display for Smart Watch
Blue/Yellow color 0.96 inch 128x64 SSD1306 30 Pin small OLED display 1.Display Specifications-Small molecular organic light emitting diode-Color: White-16 gray scale-Panel resolution: 128*64-Driver IC : SH1306-Excellent Quick response time: 10s-Extremely thin thickness for best mechanism design: 1.2......
Send Inquiry
Product Description

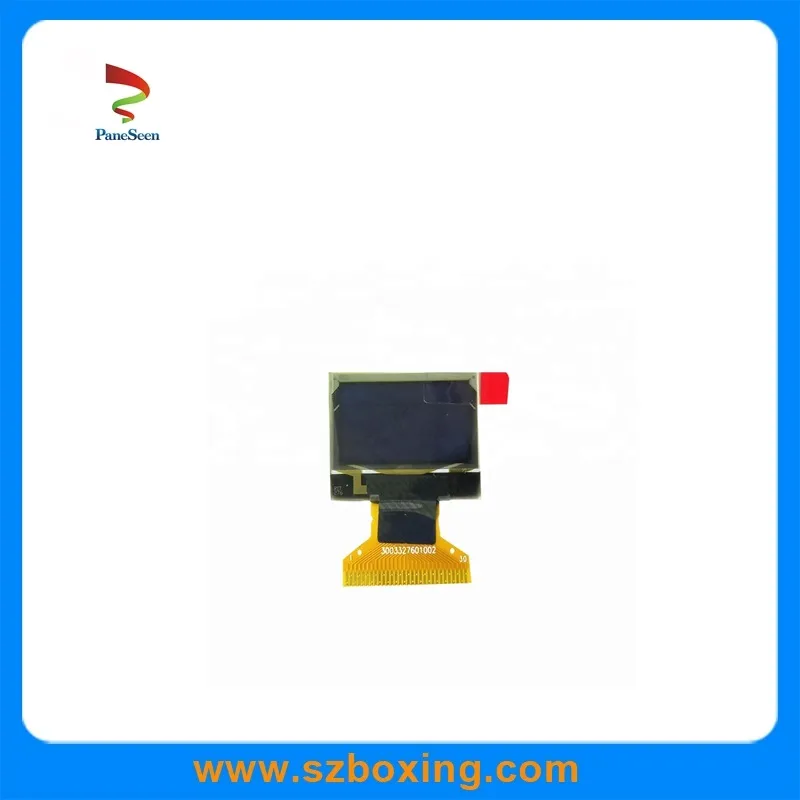

Blue/Yellow color 0.96 inch 128x64 SSD1306 30 Pin small OLED display
1.Display Specifications
-Small molecular organic light emitting diode
-Color: White
-16 gray scale
-Panel resolution: 128*64
-Driver IC : SH1306
-Excellent Quick response time: 10s
-Extremely thin thickness for best mechanism design: 1.21 mm
-High Contrast: 2000:1
-Wide viewing angle: 160 degree
-Strong environmental resistance.
-Serial Peripheral Interface,IIc Interface.
-Wide range of operating temperature: -40-70 degree
-Anti-glare polarizer.
2. Mechanical Specifications
1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 128*64
3) Panel Size: 26.7*19.26*1.4 mm
4) Active Area: 21.744*11.2 mm
5) Pixel Pitch: 0.17*0.17 mm
6) Pixel Size: 0.154*0.154 mm
7) Weight: TBD
| ITEM | SPECIFICATION |
| Display Area(mm) | 21.744*11.2 mm |
| Number of Pixels | 128*64 |
| Pin No. | 30 |
| Color Pixel Arrangement | RGB vertical stripe |
| Display Mode | Yellow/Blue |
| Brightness(cd/m^2) | 180 nits(Typ)/80nits(min) |
| Response Time(ms) | 25(Typ.) |
| NTSC | 50% |
| Contrast Ratio | 1200:1(Typ):600:1(min) |
| Power Consumption(W) | TBD W(Typ.) |
| Inversion | Dot |
| Interface Connection | 8-bit 6800/8080 Parallel, 3/4-wire SPI, II C |
| Module Weight(g) | TBD (Typ.) |
| Backlight Unit | LED |
| Surface Treatment | Anti-Glare 25% |
| Viewing Angle(CR>=10) | 170°(Horizontal.)170°(Vertical) |
.Company Advantage:
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions

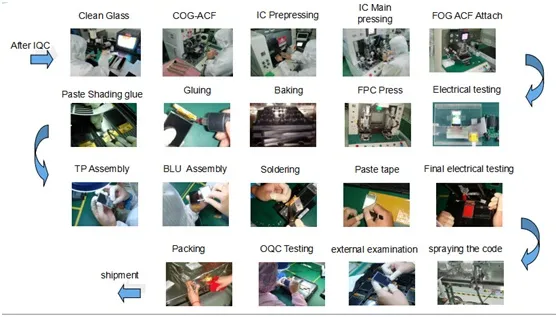

Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
If you have any new inquiry,pls contact with us freely!
