China 150L Automatic Container Mixer for Powder Coatings

Product Description

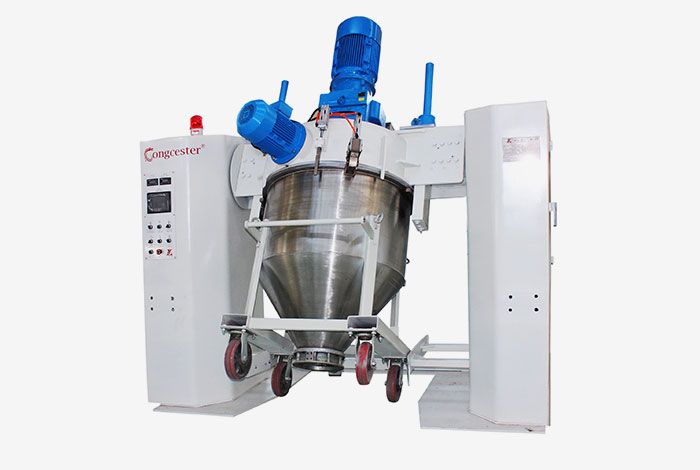

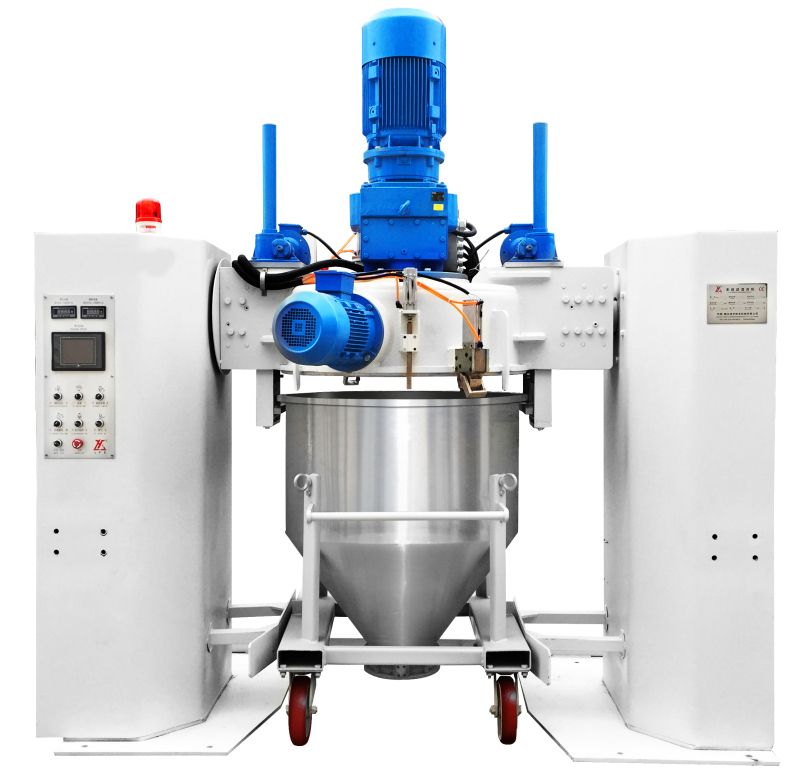

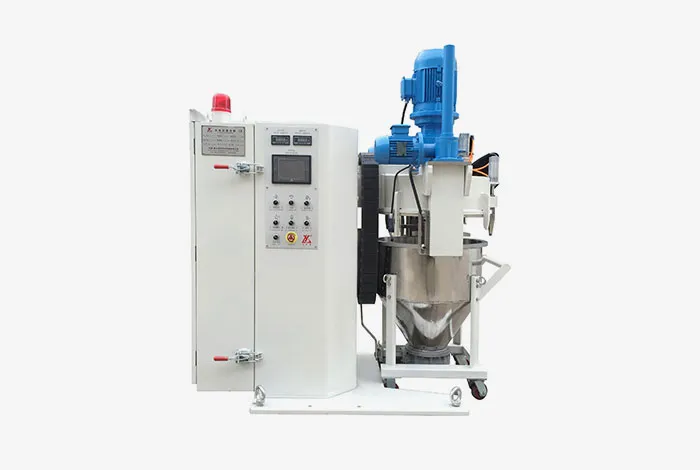

150L Automatic Container Mixer for Powder Coatings
150L Automatic Container Mixer for Powder Coatings

General Description of 150L Automatic Container Mixer for Powder Coatings:
This serious of container mixer adopts movable container design ,can be applied for the mixing of various kinds of poweder and granular materials . The whole process adopts PLC controlling system ,with homogeneously mixing effect, high production effeciency and no solidified particles

Working process of 150L Automatic Container Mixer for Powder Coatings:

After the cointainer filled with raw materials being pushed to the working positon ,it will be

pneumatically lifted securely connected with the stirring head by the automatic controlling

system. The stirring head will tilt together with the container meanwhile, then the mixing blade brings the material into rotary and centrifugal movement with geometrical circle , which ensures optimal mixing result. The container then returnes to the starting position after mixing process completed.

Features of 150L Automatic Container Mixer for Powder Coatings:

1. Processed controlled by PLC ,high automation

2. Mixing during cointainer tilting

3. Homogeneneous mixing High production efficiency

4. No leakage and solidified particle

5 .Pneumatic positioning ,clutching and lifting

6. Easy to clean and maintain

7 Safe to operate

8 Several containers for ciecular operation ,easy color changing

Main Technical Parameter of 150L Automatic Container Mixer for Powder Coatings:

Model	Volume (L)	Mixing Powder (kW)	Crushing Power (kW)	tilting Power (kW)	Dimension (MM)
FHJ-150	150	5.5		0.55	120014202000
FHJ-300	300	11	4	1.1	240017002600
FHJ-600	600	18.5	5.5	1.1	270018002950
FHJ-1000	1000	30	7.5	1.5	290020003300
FHJ-1500	1500	37	7.5	2.2	330022003400
FHJ-2000	2000	55	7.5	3.0	350024003600
