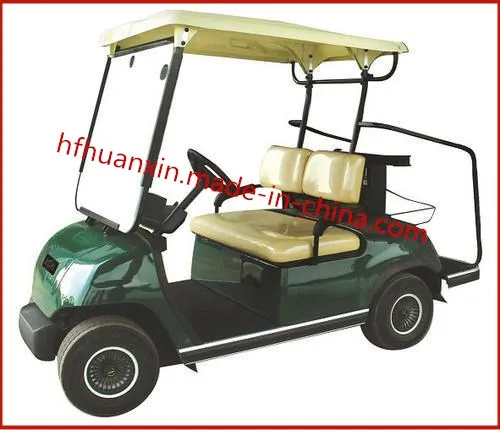

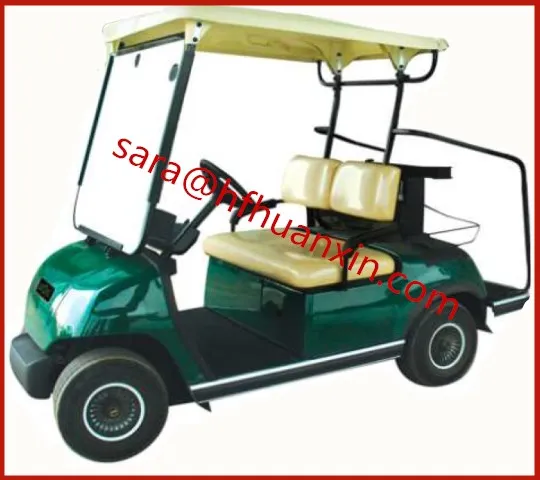

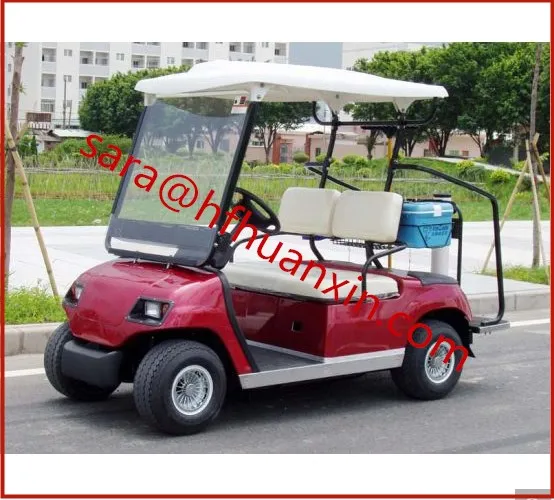

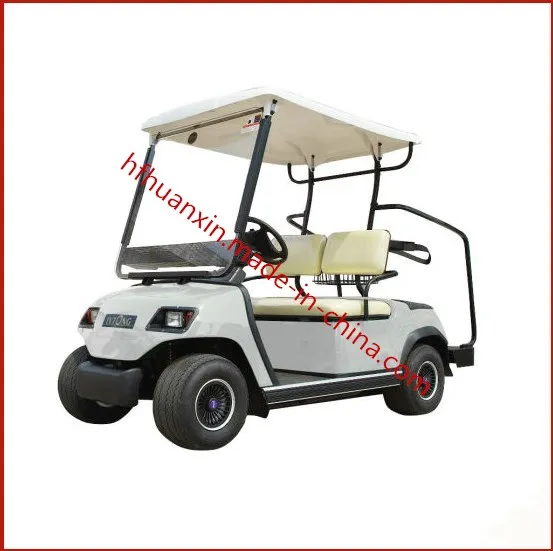

Hot Sale Small Electric Golf Cart 2 Seat with Waterproof Cover
Hot Sale Small Electric Golf Cart 2 Seat with Waterproof CoverProduct DescriptionElectric vehicle product description1. Motor: US ADC brand2. Controller: US Curtis12663. Battery:Trojan4. Stable quality, little noise, anti-fatigue and long durability;5. There is oil seal which can bear high temperatu......
Send Inquiry
Product Description
Product Description
Electric vehicle product description
1. Motor: US ADC brand
2. Controller: US Curtis1266
3. Battery:Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.
Electric system | controller | 1266/275A | |||
battery | trojan battery 8V 6 units | ||||
motor | KDS 48V/3.7KW motor | ||||
charger | Computer Intelligent,input 220V/110V,ourput 48V,20A | ||||
Charging time | Computer Intelligent input 220V/110V ourput 48V 20A | ||||
Body configuration | Glass | PC glass | Sun Roof | ABS Vacuum forming
| |
seat | leather | Floor | Autiskid rubber floor | ||
Rear mirror | Handoperated,both side | Steering | Dual automotive-style strut and self-adjust rack-and pinion steering | ||
DC/Light/Signal | 48V/12V-300W Front light,turning light,rear light,horn,Buzzer | ||||
Body | PP Vacuum forming | ||||
Dash Board | PP Vacuum forming,Voltage Indicator 48V,Switch Head Lights,Switch - Indicators Right/Left,key switch,Switch - Forward/Reverse. | ||||
Braking system | Rear drum brake+compound pedal brake | ||||
Front axle and suspension | Independent suspension,helical spring +cylinder hydraulic shock absorption | ||||
Rear axle and suspension | Integral type transaxle,gear ratio 12.31:1,semi-independent transaxle,spring,cylinder hydraulic shock absorption | ||||
Tire diameter | 452mm | ||||
Parameter
| Length*width*height | 2380*1200*1850mm | |||
Loading passenger | 2 | ||||
Max speed km/h | 24km/h | ||||
Mileage /km | 90_ 100km flat road | ||||
Max climbing ability | 30% | ||||
Mini turning radium(m) | 3.4m | ||||
Mini ground clearance | 110mm | ||||
Wheel base | Front 930/back 1010mm | ||||
Braking distance | 4.2M | ||||
Our Company
Hefei Huanxin Technology Develop Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable price, Best service and Professional product support.
Certifications

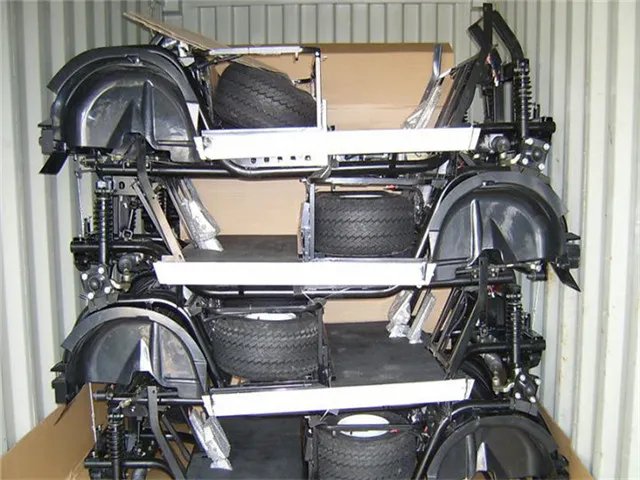

Packaging & Shipping
1.Delivery date: 15 days for mass producing
2. 1*20'GP fit 2 units.1*40'HQ fit 6 units.
3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.
