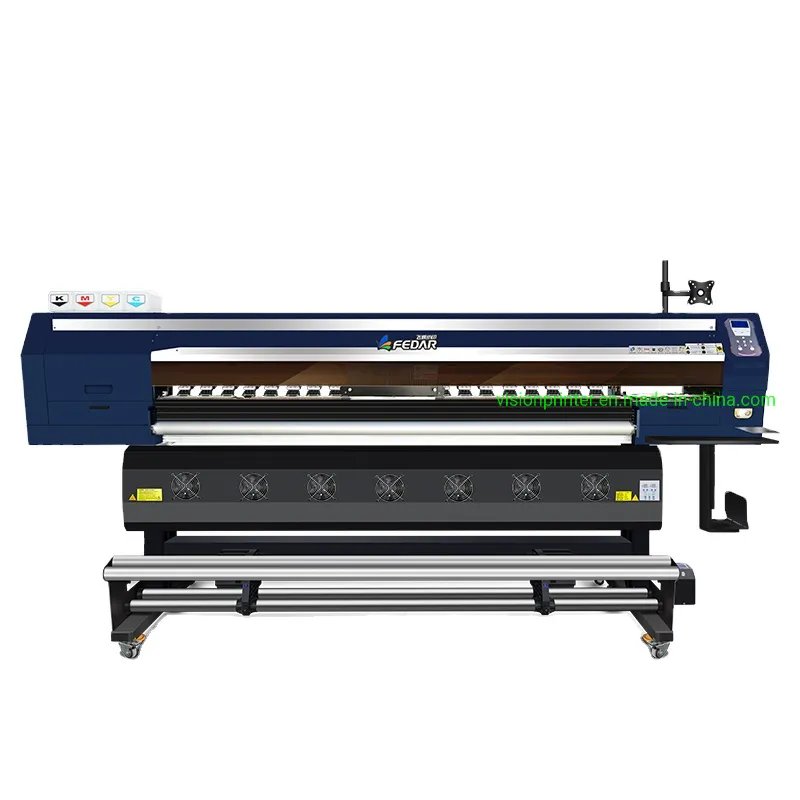

Tc1943 Sublimation Machine Fedar Brand
TC1943 Sublimation machine fedar brand, Printing ink is sublimation type. 3 pcsepson 3200 heds . max speed is 120sqm/h .with high quality sublimation inks . ModelTC1943Print HeadEPS 3200 ORIGINAL HEADS, 3 pcs Resolution3200 dpi ColorsC M Y KMax printing width 1900mmSpeed2 pass,120sqm/h ; 3 pass,......
Send Inquiry
Product Description
3 pcsepson 3200 heds . max speed is 120sqm/h .
with high quality sublimation inks .
| Model | TC1943 | ||||||
| Print Head | EPS 3200 ORIGINAL HEADS, 3 pcs | ||||||
| Resolution | 3200 dpi | ||||||
| Colors | C M Y K | ||||||
| Max printing width | 1900mm | ||||||
| Speed | 2 pass,120sqm/h ; 3 pass,85sqm/h; 4 pass,65sqm/h ; 6pass,45sqm/h. | ||||||
| Inks type | Subliamtion ink/disperse ink | ||||||
| Printing media types | nylon, polyester (Transfer Paper Over 40 grm) | ||||||
| Computer Configuration | Win7 64 bit , Win10 64 bit, Hard Disk: NTFS, C Disk: NTFS, C Disk Space: More than 100G, GPU: ATI Discrete GPU, CPU:Above intel i5/i7, Gigabit LAN | ||||||
| Head Moisture Method | auto moisturizing& cleaning function | ||||||
| Media Tranfer | Auto media feeding , tention collecting take-up system . | ||||||
| Heater | External Dryer&Heating system | ||||||
| Rip softwares | Maintop 6.0/Photo print/ONYX/Neo Sstampa. | ||||||
| Picture format | Eps,TIF,Jpg,Pdf | ||||||
| sending materials type | Roll to roll per roll. | ||||||
| Power | Input : 210-230VAC, 50/60HZ 16A. Print system: 1000W. Dryer: max 3600W | ||||||
| Room temperature | Temp.: 20-30ºC, Humidity:60-80% ; | ||||||
| Machine size | Machine size : 3145*1800*680mm Packaging size : 3200*1000*900mm | ||||||
Feature

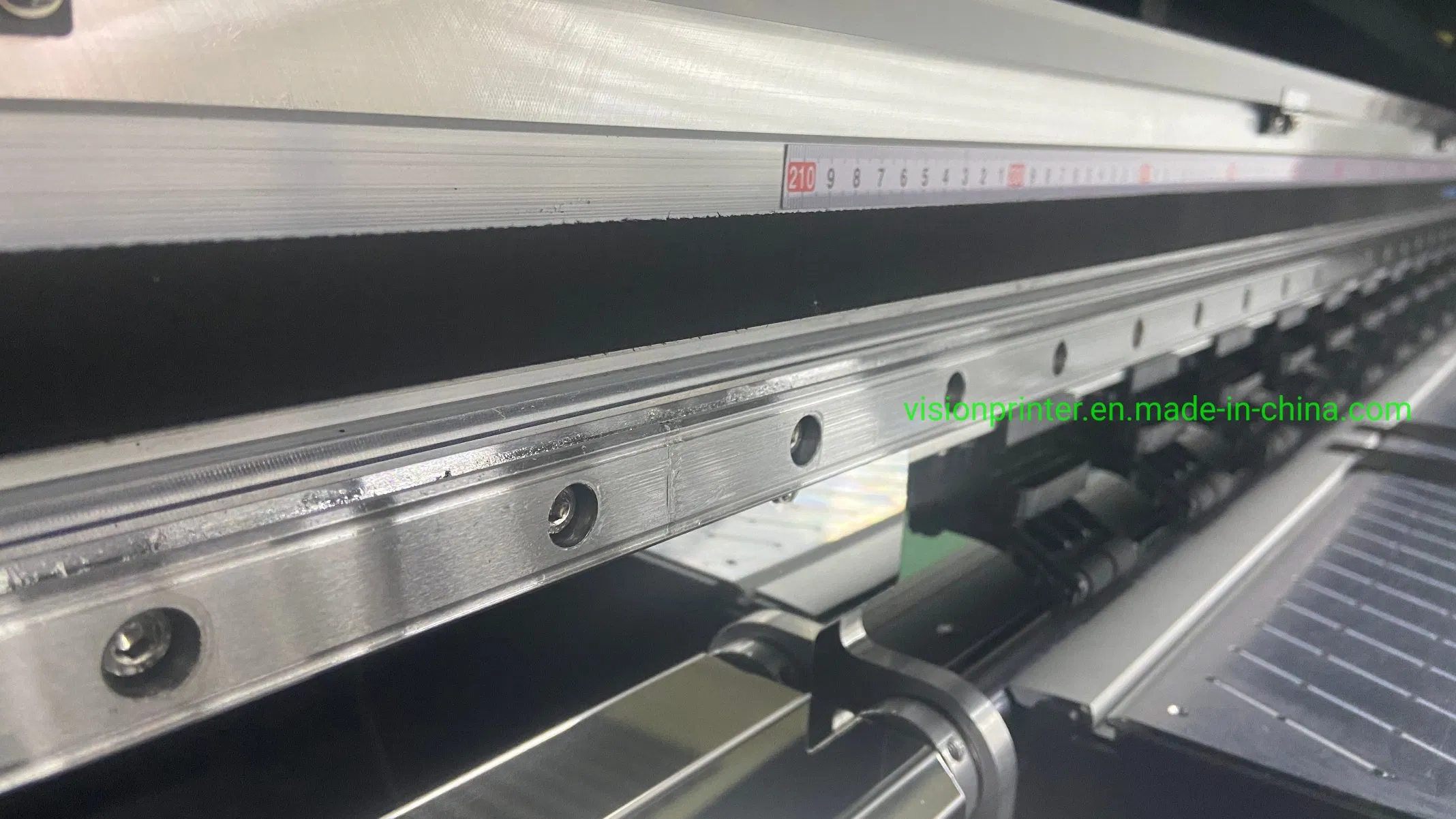

1. THK Guide Rail:
Adopt Japan THK silent linear guide makes the carriage movement is more stable and the life is longer.

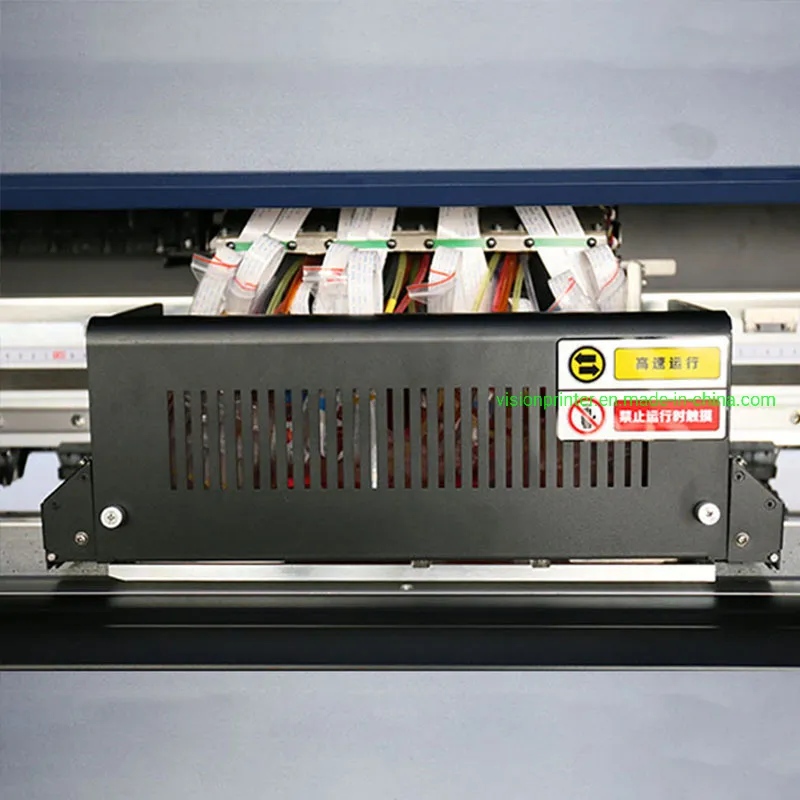

2. Printhead:
EPS I3200-A1 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can ensure perfect and high resolution printing performance.
3. Platform:
Platform adopts 8mm aluminimum alloy,which can reduce the shape variables during transportation.
4. Pinch Roller:
Specially designed pinch roller to ensure more accurate media movement.
5. Leadshine Motor:
Leashine server motor driver,high resolution and stable.

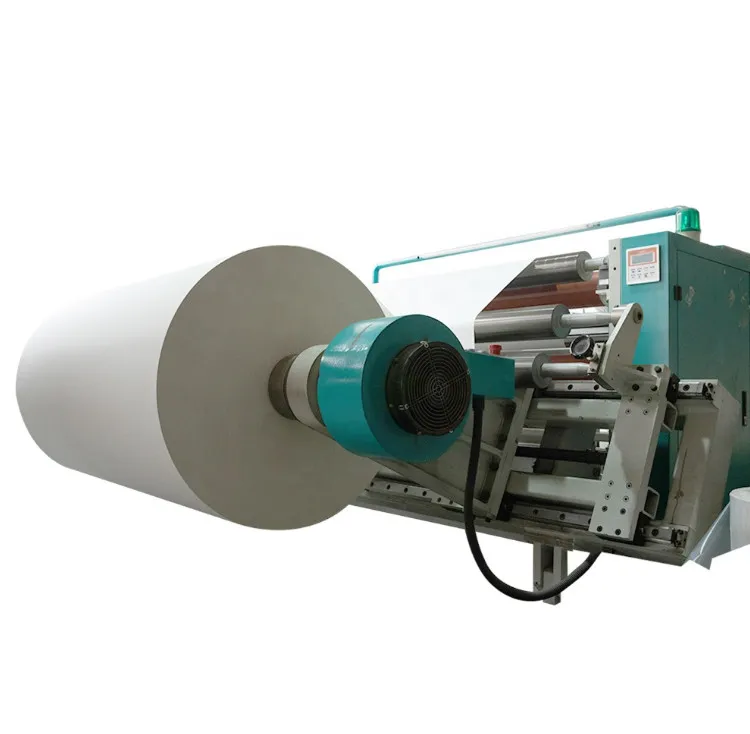

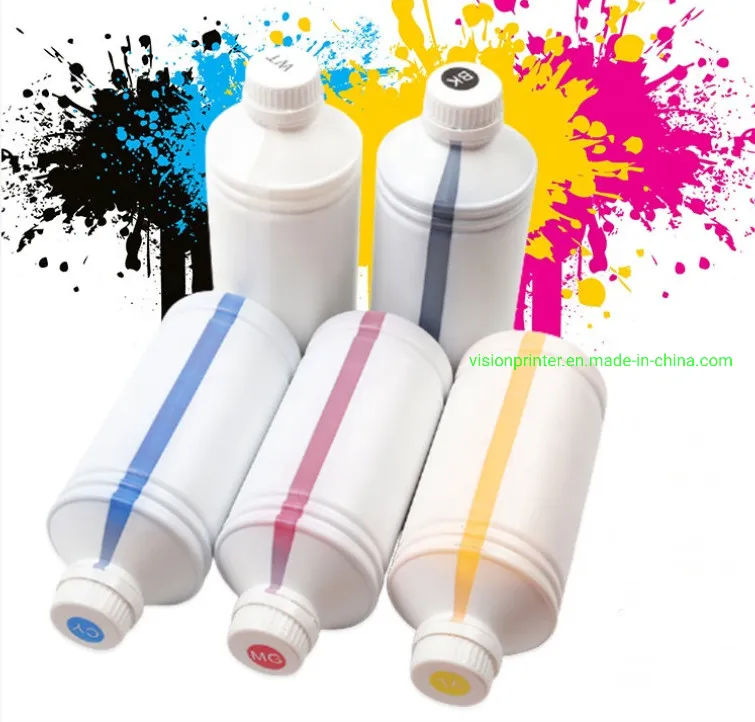

High quality sublimation ink s and paper available .
