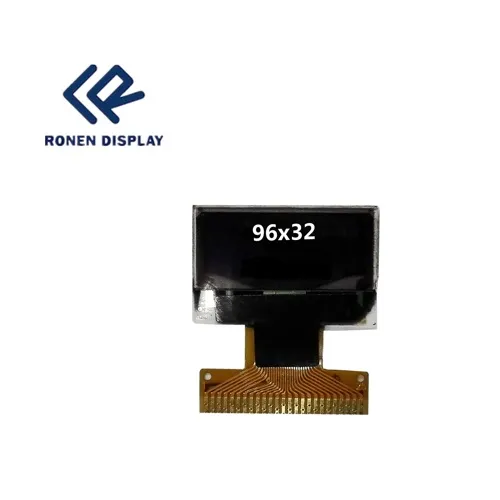

0.68inch 25 Pin 96*32 Resolution OLED Display

Product Description

Company Profile:

RONGEN have concentrate on designing and manufacturing display products for more than 12 years.

We can offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.

Now RONGEN Display Co., LTD is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.
0.68inch 25 Pin 96*32 Resolution OLED Display

0.68inch 25 Pin 96*32 Resolution OLED Display

Specification:

Diagonal Screen Size	0.68"
Color	Mono
Module Construction	COG
Product	RG-L0068HLL-01
Driving Method	Passive Matrix
Number of Pixels	96×32
Active Area(mm)	16.3×5.42
Panel Size(mm)	19.7×12.7×1.2
Pixel pitch(mm)	0.17×0.17
Pixel Size(mm)	0.15×0.15
Weight	TBD
Duty	0.03125
Pins	25
Color	Monochrome (White)
Porwer Supply Voltage	2.6~3.5V
Frame Rate	190 Frames/Sec
Operating Temperature	-30~70ºC
Storage Temperature	-40~80ºC
Drive IC	SSD1306
Brightness	100 (Min) cd/m2
Internal DC/DCEnable	3.3~4.2V
Supplied Externally	7.5V
Interface	Parallel /I2C/ 4-wire SPI
Folding Ability	Folding Type
Assembly	Soldering
