Home > Products Category > Audio & Video > LCD Module > 0.96 Inch Area Color (Yellow & Blue) OLED Display with 128X64 Pixels
0.96 Inch Area Color (Yellow & Blue) OLED Display with 128X64 Pixels
Product Descriptions: RG P/NRG-L0096DLL-04Driving Method Passive MatrixNumber of Pixels128×64Active Area(mm)21.744×11.204Panel Size(mm)26.70×19.26×1.45Pixel pitch(mm)0.17×0.17Pixel Size(mm)0.154×0.154Duty1/64Pins30ColorArea Color (Blue ......
Send Inquiry
Product Description
Product Descriptions:

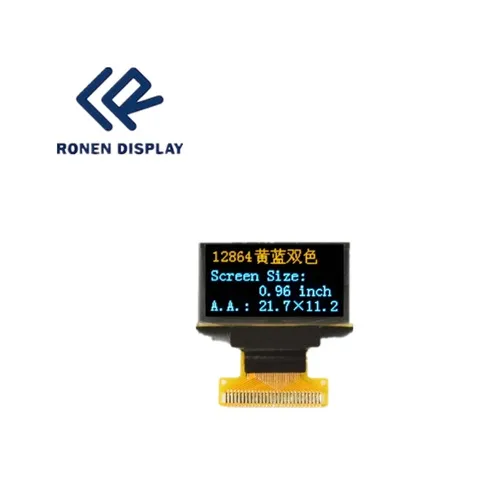

Product Image:
| RG P/N | RG-L0096DLL-04 | |
| Driving Method | Passive Matrix | |
| Number of Pixels | 128×64 | |
| Active Area(mm) | 21.744×11.204 | |
| Panel Size(mm) | 26.70×19.26×1.45 | |
| Pixel pitch(mm) | 0.17×0.17 | |
| Pixel Size(mm) | 0.154×0.154 | |
| Duty | 1/64 | |
| Pins | 30 | |
| Color | Area Color (Blue & Yellow) | |
| Porwer Supply Voltage | 2.6~3.5V | |
| Frame Rate | 100Frames/Sec | |
| Operating Temperature | -30~70ºC | |
| Storage Temperature | -40~80ºC | |
| Drive IC | SSD1306 | |
| Brightness | 150 (Min) cd/m2 | |
| Driving Voltage | Internal DC/DCEnable | 3.3~4.2V |
| Supplied Externally | 9V | |
| Interface | Parallel /I2C/ 4-wire SPI | |
| Folding Ability | Folding Type | |
| Assembly | Soldering | |

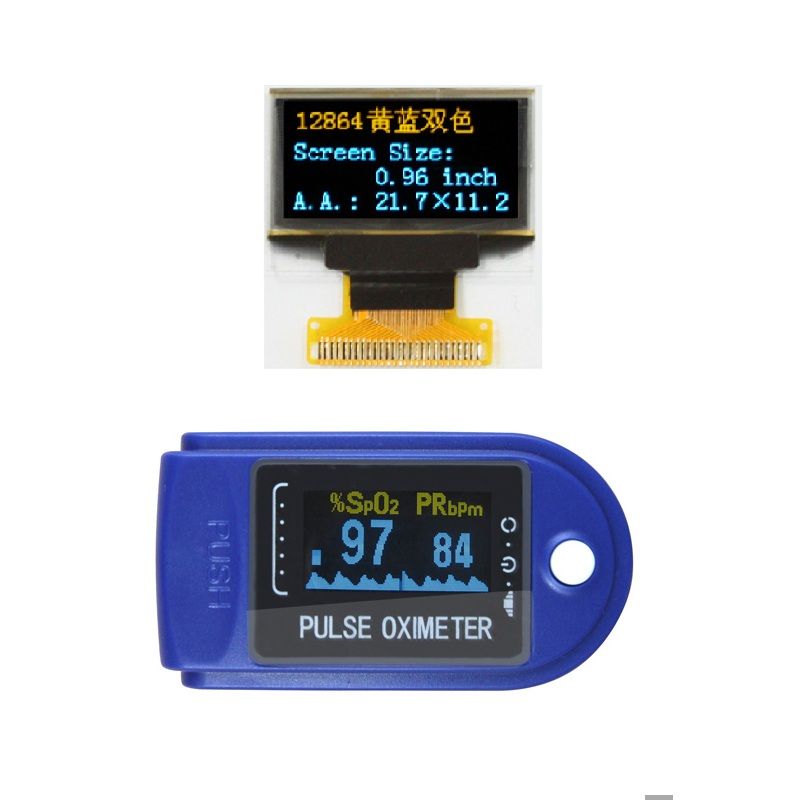

Product Image:
